NEW !! 29.07.2010

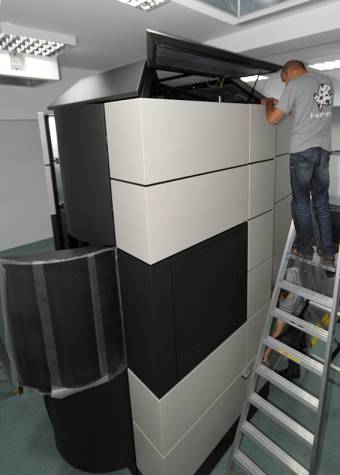

TITAN³ 80-300kV installation started

Titan CUBED 80-300 is an FEG monochromated Cs image corrected Transmission Electron Microscope in IF PAN

Parameters

- Acceleration voltage 60 to 300 kV;

- Energy resolution 0.2 eV at 300 kV with monochroamtor and TRIDEM 866 ERS spectrometer

- Information limit better then 0.1 nm

- Point resolution with Cs corrector the same as information limit

- STEM resolution: = 0.136 nm with HAADF detector

- Double tilt low noise LN2 cooled holder

- Remote operations

TEM methods

- Bright field/Dark Filed Imaging

- HRTEM/TEM imaging

- STEM, Z-contrast imaging

- SAD, CBED, nano-beam diffraction

- EDX analysis

- High energy resolution EELS analysis

- Electron holography

- Lorentz Microscopy
